Haulm separators

Haulm separators that makes the difference

By placing a haulm separator between the product cleaner and the telescopic conveyor, the haulm residue will be removed from the product immediately during the storage.

Flexible and reliable

Bijlsma Hercules' haulm separators separate the haulm residue, soil and other plant components such as cultivated grass from the product flow. Tubers that are still attached to the stems of the foliage are separated with a roller above the cone belt.

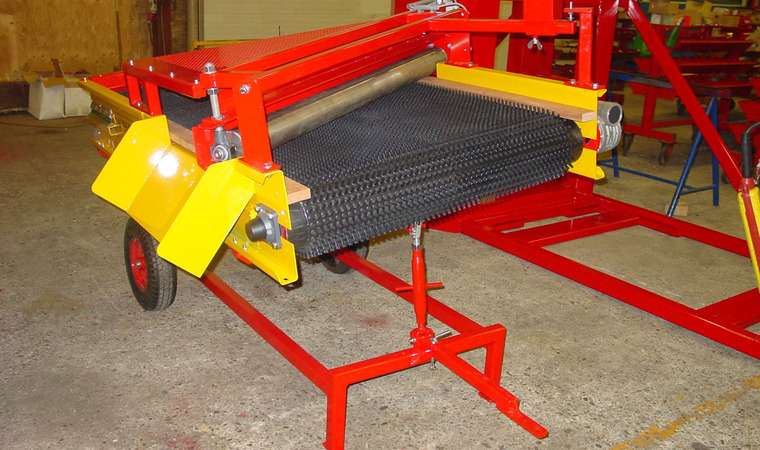

Haulm separator on mobile undercarriage (option)
  • Undercarriage on pneumatic tires, with which the machine can be adjusted at almost any angle.
  • Movable top roller. If a stone threatens to get stuck between the roller and the pintle belt, the reversing roller has the option to tilt upwards, so the opportunityto move upwards in order to keep the pintle belt damage free.
  • Heavy, industrial pintle belt for a long lifespan.
Model BLS 2011-L BLS 2011-R
Working width 1,000 mm 1,000 mm
Working length 100 - 1,200 mm 100 - 1,200 mm
Product output side left right
Stainless steel reverse roller drive motor 0.37 kW 0.37 kW
Pintle belt drive motor 0.75 kW 0.75 kW
Weight 719 kg 719 kg
* Subject to technical changes.
