Outer spiral rollers (BS)

Product cleaners with outer spiral (BS)

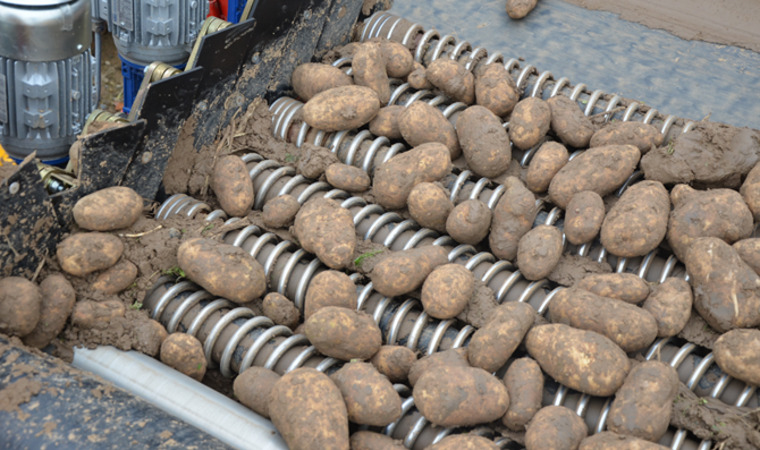

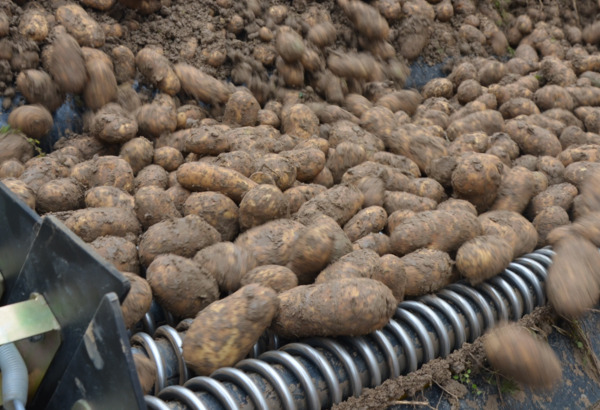

With the outer spiral, Bijlsma Hercules introduces a completely new cleaning principle. This principle uses a spiral roller with a stationary heart. As a result, tare no longer has a chance to start on the core of the spiral roller and the cleaning result will always be optimal. This cleaner is equipped with a direct drive per roll. As a result, slip and wear are kept to a minimum, so a long product lifespan is guaranteed. In addition, the spiral rollers are equipped with a special scraper, which can be used when the product is dirty. The product cleaner is available as standard in versions with 7 rollers, but can be expanded with additional rollers for a higher cleaning capacity. Combining several cleaning beds one after the other is also possible with this version.

Product cleaner BS

Drive through motors and reducers per roller (0,75 kW per shaft).
Soil- and crop conveyor (on the product cleaners with a working width starting from 1.600 mm), equipped with convex drums and a belt guiding system for optimal control.
Discharge conveyors with double directive, so unloading at the left or right side of the machine can be easily set.
Stepless adjustable drop from 5 - 59 mm by means of a hydraulic hand pump unit or hand spindle.
Bearing of the rollers by means of industrial bearings, which can be easily replaced from the outside for maintenance and replacement.
Simply adjustable slope of the cleaning system.
Possibility to (afterwards) to incorporate a continental web, thus increasing the cleaning capacity of the unit and to create a possibility for sorting.
Suspension of the rollers by means of a proper scissor construction.
BLC Line Module System.

Version with 6 or 8 cleaning rollers instead of 7.
Frequency control on the drive of the product cleaner.
Soil conveyor and crop conveyor slidable on rollers.
Sieve chain above soil discharge conveyor, pitch 36 or 42 mm, for separation of the bottom and oversize.
Electrical connection for an extra soil conveyor.
Hydraulic height adjustment of the crop conveyor.
Crop conveyor in two parts, splitting the product flow (2 x 1,750 mm).
Central discharge of the crops, instead of the normal sidely discharge.

Model	BPR 117 BS	BPR 167 BS	BPR 207 BS	BPR 247 BS
Working width	1,100 mm	1,600 mm	2,000 mm	2,400 mm
Amount of rollers	7	7	7	7
Drive	0.75 kW per roll	0.75 kW per roll	0.75 kW per roll	0.75 kW per roll
Soil conveyor length	2,400 mm	2,400 mm	2,900 mm	3,300 mm
Soil conveyor width	700 mm	700 mm	700 mm	700 mm
Soil conveyor drive	0.75 kW	0.75 kW	0.75 kW	0.75 kW
Crop conveyor length	option	2,400 mm	2,900 mm	3,300 mm
Crop conveyor width	option	700 mm	700 mm	700 mm
Crop conveyor drive	option	0.75 kW	0.75 kW	0.75 kW

* Subject to technical changes.
